| Certification: | CE . |
| Model Number: | KQ 200L KQ 8000L |
| Minimum Order Quantity: | One set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wooden Box |
| Delivery Time: | 10 to 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Set / Month |
| Name: | UHT Milk Processing Equipment | Material: | Sanitary Stainless Steel 304 / 316 / 316L |
|---|---|---|---|
| Application: | Milk ,Yogurt And Yogurt Production | Voltage /hz /phase: | ISO ,CE |
| Turn Key Project: | Yes | Packing: | Pallets |
| Warranty: | Two Year One Year | Delivery: | 40 Days After Get Your Advance Payment |
| Highlight: | dairy production line,milk pasteurization machine |
||

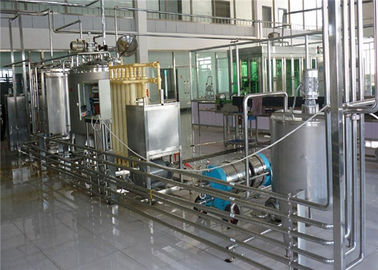

Plastic Bottle Glass Bottle Milk Juice Yogurt Butter Production line
1. Instruction :
Food grade stainless steel dairy production line small milk line products According to customer requirements and yield to customize a variety of fresh milk, pasteurized milk, reduced milk, peanut milk, students milk equipment advanced technology to provide plant planning, equipment installation and commissioning training to handle full set of turn key project, a full set of fresh milk production line mainly has: milk collection system, allocation system, net milk and standardization system, homogenization, degasification system, system and sterilization, filling the system etc.
Food grade stainless steel dairy production line small milk line products.
2. Technical Parameter :
| No. | Product Name | Specifications | Quantity |
| 1. Water treatment system | |||
| 101 | sand filter | 2T | 1 |
| 102 | activated carbon filter | 2T | 1 |
| 103 | water softener | 2T | 1 |
| 104 | precision filter | 2T | 1 |
| 105 | reverser osmosis | 2T | 1 |
| 2. Pure water supplying station | |||
| 201 | electrical control system | 380V | 1 |
| 202 | storage tank | 2T | 1 |
| 203 | water pump | 10T/24M | 1 |
| 204 | constant pressure system | 2T | 1 |
| 3. Recovery system | |||
| 301 | milk storage tank | 10000L | 2 units |
| 302 | Input Pump | 10T/H | 5 units |
| 303 | CIP return pump | 25T/H | 2 units |
| 4. Batching system | |||
| 401 | hot water tank | 3T | 1 |
| 402 | plate heat exchanger | 18m² | 2 units |
| 403 | square high speed emulsification tank | 2T | 1 |
| 404 | mixing tank | 8T | 3 units |
| 405 | Oilcan | 500L | 2 units |
| 406 | Duplex filter | 300 | 1 |
| 407 | homogenizer | 8T/H | 1 |
| 5. Concentration system | |||
| 501 | Three-efficiency concentration tower | 5000KG/H | 1 |
| 502 | balance tank | 1000L | 3 |
| 503 | input pump | 5T/H | 4 |
| 504 | input pump | 10T/H | 1 |
| 505 | cooling wate pump | 30T/H | 2 |
| 506 | vacuum pump | 7.5KW | 2 |
| 507 | cooling tower | 150T | 1 |
| 6. Drying system | |||
| 601 | concentrated milk tank | 1000L | 2 |
| 602 | rotor pump | 2T/H | 1 |
| 603 | high-pressure pump | 1500L/H | 2 |
| 604 | electric sieve | 300 | 1 |
| 605 | spray-drying tower | 1000 | 1 |
| 606 | fluidized bed | 750 | 1 |
| 607 | milk powder groove | 500L | |
| 7. Packaging system | |||
| 701 | screw feeder | 800L/H | 1 |
| 702 | conveyor | 1 | |
| 703 | Semi-automatic big bag filling machine | 1 | |
| 704 | sealer | 1 | |
| 705 | seam bag machine | 1 | |
| 8. CIP cleaning system | |||
| 801 | Acid tank | 3T | 1 |
| 802 | Alkali tank | 3T | 1 |
| 803 | hot water tank | 3T | 1 |
| 804 | strong acid tank | 100L | 1 |
| 805 | strong alkali tank | 100L | 1 |
| 806 | diaphragm pump | 20L/Min | 2 |
| 807 | cleaning pump | 20T/24M | 1 |
| 808 | pipes and valves | 1 | |
| 809 | steam reduce system | DN50 | 1 |
| 810 | PLC controlling system | 1 | |
| 9. Boiler system | |||
| 901 | horizontal oil-fired boiler | 4T | 3 |
| 9092 | steam tank | 50L | 1 |
| 10. Refrigeration system | |||
| 1001 | refrigeration unit | 50P | 3 |
| 1002 | ice water tank | 10T | 1 |
| 1003 | ice water pump | 20T/H | 1 |
